HOMEOWNER EDUCATION
Understanding Your
HVAC System
Most homeowners think air quality starts at the vents. In reality your HVAC system is a connected airflow network made of 8 critical components.
According to industry best practices, indoor air quality begins at the heart of the system — not at the registers.
What Does HVAC Stand For?
- Heating – provides warmth in colder weather
- Ventilation – moves air through your home
- Air Conditioning – cools and dehumidifies air
This combination ensures your indoor environment stays comfortable year-round.
THE COMPLETE SYSTEM

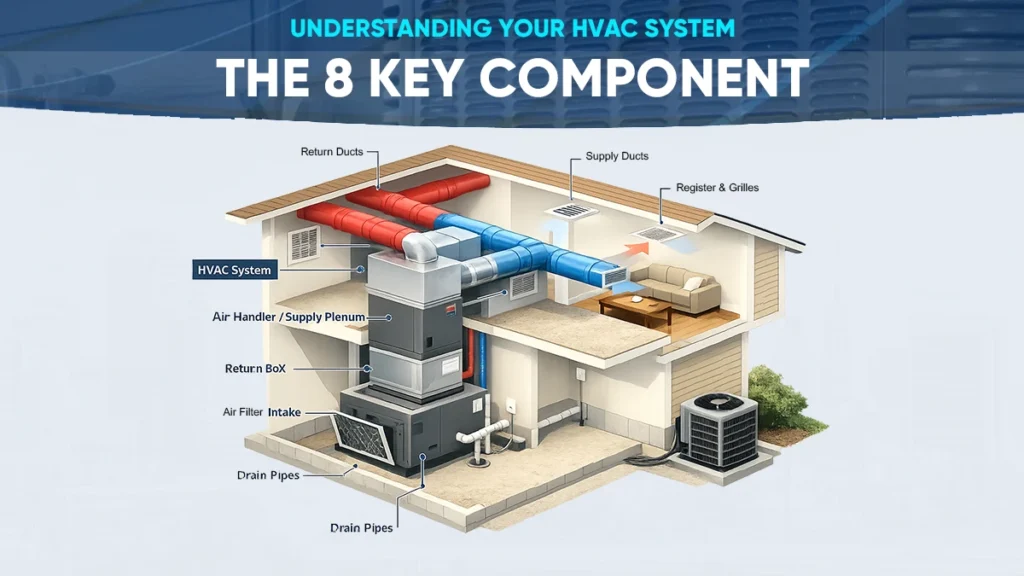

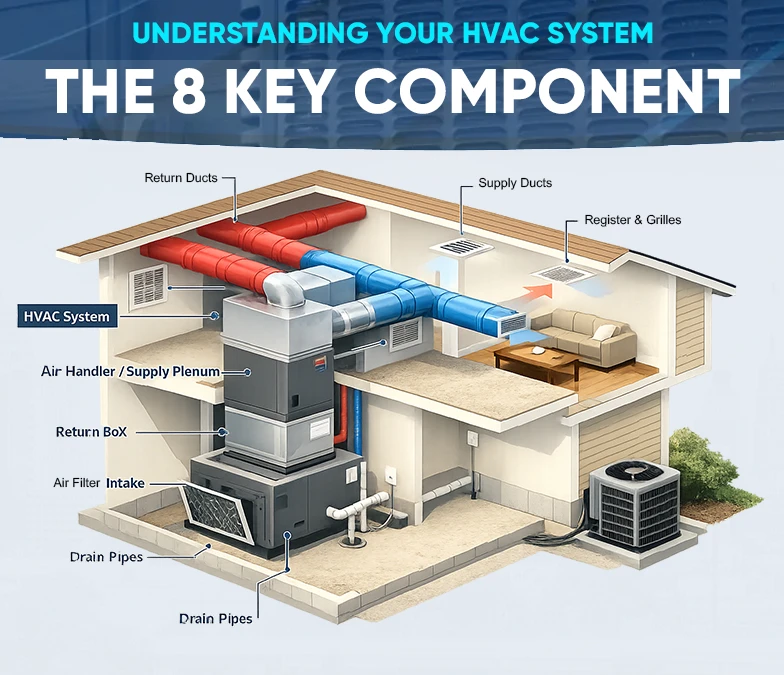

The 8 Core Components of Your HVAC Airflow System
Each part plays a vital role in delivering clean, conditioned air throughout your home.
1. HVAC System
Includes the evaporator coil, blower, and heat chamber — where air is conditioned and moved.
2. Air Handler / Supply Plenum
Pushes conditioned air into the duct system.
3. Drain Pipe (Condensate Line)
Removes moisture created during cooling and helps prevent mold growth.
4. Return Box
Collects air from the home and directs it back into the system.
5. Air Filter Intake
Protects the HVAC system by blocking dust and debris before air reaches internal components.
6. Supply Ducts
Deliver conditioned air into living spaces.
7. Return Ducts
Bring air back to the system for reconditioning.
8. Registers & Grilles
The visible points where air enters and exits rooms

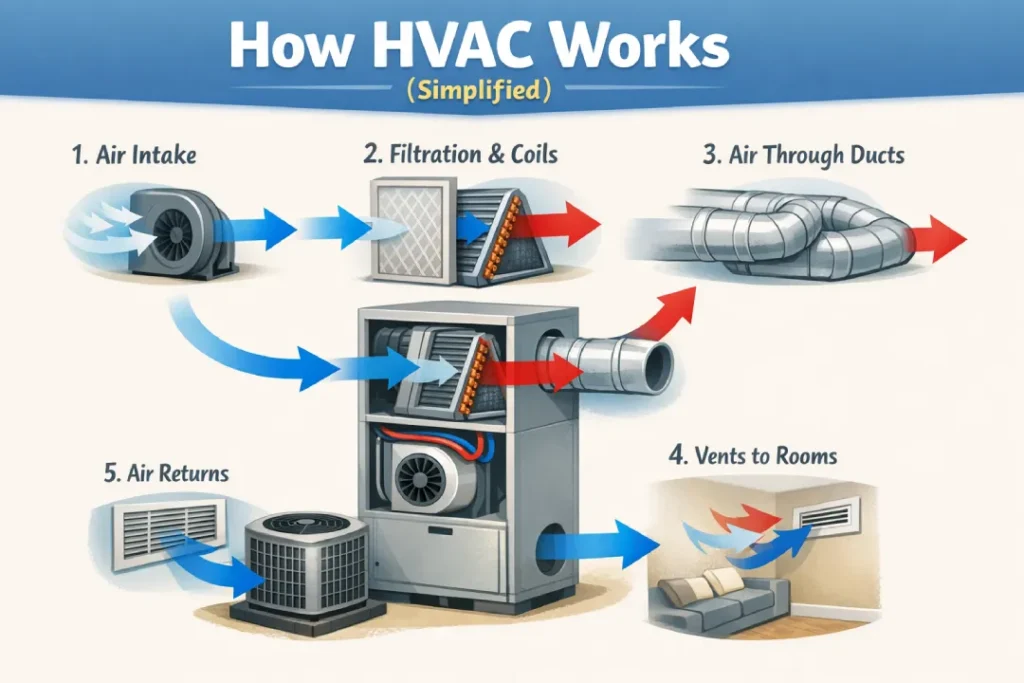

How HVAC Works? (Simplified)
- 1. The blower draws indoor air into the system.
- 2. Air passes through filters and coils.
- 3. Heated or cooled air is pushed through the ductwork.
- 4. Conditioned air exits through vents into living spaces.
- 5. Air returns to the system to complete the cycle
This continuous flow supports comfort, efficiency, and air quality
WHY THIS MATTERS
Cleaning Vents Alone Does Not Address The Full System
True HVAC care begins at the source of airflow inside the system itself.
Understanding all 8 components helps homeowners:
Improve indoor air quality
Maintain system efficiency
Prevent moisture-related issues
Extend equipment life
KEY COMPONENTS
What’s Really Inside Your HVAC System?
Your air doesn’t just travel through vents — it moves through an 8-part airflow system.
Simple Truth – Healthy airflow starts at the system not just at the vents.
FAQs
Changing filters regularly and ensuring clear airflow paths is key.
Not always; experts and agencies note that routine cleaning may not be necessary unless there’s visible contamination or airflow issues.
Annual inspection is ideal — especially before major seasons like summer or winter.
